Alkota
Machines
The inside Story
CLEANING CREW XTREME SERIES
Built and designed for those who demand the highest
performance. The X-treme series combines the design and
engineering, highest quality materials, uncompromising
craftsmanship to create a pressure washer that takes every
standard of the industry and blasts it out of the water.
Features:
- Pressure atomizing burner coupled with a cold water
wrap coil, schedule 80 steel pipe for a long lasting,
highly efficient heating system
- Oil bath type pumps designed for rugged use and long
life
- Precise chemical metering
- Stainless steel float tank
- Rotary electrical switches
- Enclosed stainless steel control panel
- High quality single phase motor with dual capcitors
- Ball bearing pneumatic wheels
- Easy access fuel tank with replaceable filter
- Safety relief valve
- Heavy steel and stainless steel construction
- 50’ of wire braid hose and trigger wand
- Fuel solenoid for positive oil shut off
- Temperature control – variable from 32’ to 200’
|
Model # |
Pressure |
GPM |
Weight |
Motor |
Burner (Pressure Atomizing
Auto Ignition) |
|
2162T |
1600 PSI |
2.1 |
400 lbs. |
2.3 HP, 115 V, 1 PH |
Kero, #1 Dsl; 200,000
BTU |
|
2162TA |
1600 PSI |
2.1 |
340 lbs. |
2.3 HP, 115 V, 1 PH |
Kero, #1 Dsl; 170,000
BTU |
|
3112T |
1100 PSI |
3.0 |
400 lbs. |
2.3 HP, 115 V, 1 PH |
Kero, #1 Dsl; 315,000
BTU |
|
3202T |
2000 PSI |
3.0 |
420 lbs. |
4 HP, 230 V, 1 PH |
Kero, #1 Dsl; 315,000
BTU |
|
3242T |
2400 PSI |
3.0 |
425 lbs. |
5 HP, 230 V, 1 PH |
Kero, #1 Dsl; 315,000
BTU |
|
4182T |
1800 PSI |
4.0 |
450 lbs. |
5 HP, 230 V, 1 PH |
Kero, #1 Dsl; 434,000
BTU |
|
4232T |
2300 PSI |
3.7 |
575 lbs. |
6 HP, 230 V, 1 PH |
Kero, #1 Dsl; 434,000
BTU |
|
4302T |
3000 PSI |
4.0 |
590 lbs. |
6 HP, 230 V, 1 PH |
Kero, #1 Dsl; 434,000
BTU |
|
5182T |
1800 PSI |
4.8 |
575 lbs. |
6 HP, 230 V, 1 PH |
Kero, #1 Dsl; 560,000
BTU |
|
5232T |
2300 PSI |
4.8 |
675 lbs. |
8 HP, 230 V, 1 PH |
Kero, #1 Dsl; 560,000
BTU |
|
5302T |
3000 PSI |
4.8 |
685 lbs. |
10 HP, 320 V, 3 PH |
Kero, #1 Dsl; 560,000
BTU |
* All 115 volt models have ground fault interrupters
standard.
|

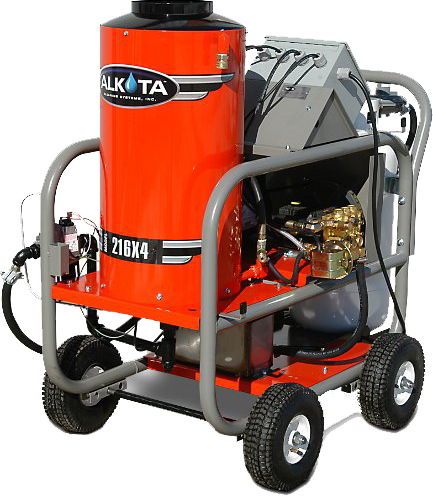

4X4 SERIES XTREME
MOBILITY
Alkota's Hot High Pressure Washers are now even more mobile
with the new Four Wheel Series. The X4 Cleaning Crew and the
AX4 Tiny Terror can be moved with ease, so you can bring the
washer to the job instead of bringing the job to the washer.
OIL FIRED
- Engineered with oil both type pumps designed for
rugged usage
- Easy access controls
- Precise chemical metering, stainless steel float
tanks and rotary on/off switches
- Pressure atomizing burner coupled with a cold water
wrap provides a highly efficient heating system
- Perfect for farms, service stations, repair shops,
or rental fleets
TAKE YOUR PICK
- More than a dozen four wheel high pressure washers
make it easy to find just the right one for you
- Choose from six different capacities, ranging from
1.5 GPM to 4.8 GPM
- Automatic ignition standard
- All models available in XTreme series with stainless
steel
FEATURES
- 4 tubed pneumatic wheels
- Adjustable front axle for proper weight distribution
- Adjustable height push handle
- Industrial strength 1½" tube frame
- Powder coated paint finish for durability
- Belt drive pump standard
- 50' hose, shut off gun and 36" insulated wand
- Hose reel optional
|
Model # |
Pressure |
GPM |
Motor |
Burner (Pressure Atomizing
Auto Ignition) |
|
216 x 4 |
1600 PSI |
2.0 |
2.3 HP, 115 V, 1 PH |
Oil Fired |
|
311 x 4 |
1100 PSI |
3.0 |
2.3 HP, 115 V, 1 PH |
Oil Fired |
|
320 x 4 |
2000 PSI |
3.0 |
4 HP, 220 V, 1 PH |
Oil Fired |
|
324 x 4 |
2400 PSI |
3.0 |
5 HP, 220 V, 1 PH |
Oil Fired |
|
418 x 4 |
1800 PSI |
4.0 |
5 HP, 220 V, 1 PH |
Oil Fired |
|
423 x 4 |
2300 PSI |
3.7 |
6 HP, 220 V, 1 PH |
Oil Fired |
|
430 x 4 |
3000 PSI |
4.0 |
8 HP, 220 V, 1 PH |
Oil Fired |
|
518 x 4 |
1800 PSI |
4.8 |
6 HP, 220 V, 1 PH |
Oil Fired |
|
523 x 4 |
2300 PSI |
4.8 |
8 HP, 220 V, 1 PH |
Oil Fired |
|
530 x 4 |
3000 PSI |
4.8 |
10 HP, 220 V, 3 PH |
Oil Fired |
STEAM CLEANERS
Tricycle undercarriage plus the ball bearing pneumatic
wheels allow these cleaners to be moved easily even over
rough terrain and gravel. Ranging in volume from 2.1 to 5
GPM and pressure from 1000 to 3000 PSI, Alkota provides a
washer for everyone's cleaning requirements. Constructed for
heavy use, these cleaners are designed with 14 gauge
chambers for strength and durability. The units are
constructed with condensation drains and stainless steel
water tanks to retard and prevent corrosion. Add oil bath
pumps with ceramic plungers, precise metered chemical, cold
water wrap spiral design, removable coils, and safety relief
protection from excessive pressure and you have equipment
that will solve your cleaning problems for years. Whatever
your needs, Alkota has a cleaner for you. With these units
clean single trucks or fleets, industrial complexes,
aircraft, farrowing houses or large construction equipment.

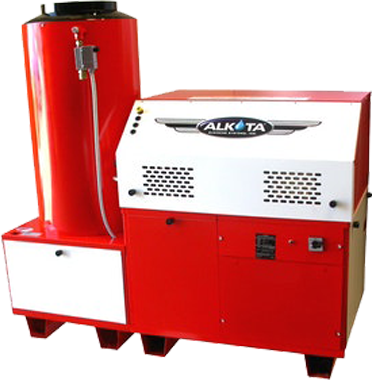

PORTABILITY AT ITS BEST
NATURAL/LP
Tackle the biggest cleaning jobs with Alkota's Gas Fired
Series of pressure washers. These durable units operate on
natural or liquid propane gas for economical and dependable
performance.
Our gas fired units are available in three different model
types:
• Stationary
Our stationary units are popular for their performance and
durability. They're perfect for machine and repair shops,
farms, hog producers and implement dealers.
• Portable
With several of the same design characteristics as our famed
Cleaning Crew series, these LP gas fired units give you the
portability you need. Our portable units are ideal for
restaurants, fast food chains, hospitals and
pharmaceuticals.
• Big Guys
These stationary units are ready to attack the toughest
cleaning chores. They're excellent for truck washes, machine
and repair shops, farms, hog producers and implement
dealers.
|
Features: |
- Stainless steel water tanks prevent rust out
on float area
- Available in natural or liquid propane gas
- Chambers and frames built from heavy gauge
steel to provide rugged durability
- Engineered to keep components out of the
dirt for longer equipment life
|
|
Model # |
Pressure |
GPM |
Burner |
Weight |
Description |
Motor |
|
2161 |
1600 PSI |
2.1 |
200,000 BTU |
550 lbs. |
Stationary Unit |
2.3 HP, 115 V, 1 PH (20
Amp) |
|
2161P-T |
1600 PSI |
2.1 |
200,000 BTU |
400 lbs. |
Portable Unit with Ball
Bearing Pneumatic Wheels |
2.3 HP, 115 V, 1 PH |
|
3111 |
1100 PSI |
3.0 |
320,000 BTU |
550 lbs. |
Stationary Unit |
2.3 HP, 115 V, 1 PH |
|
3201 |
2000 PSI |
3.0 |
320,000 BTU |
575 lbs. |
Stationary Unit |
4 HP, 230 V, 1 PH |
|
3201P-T |
1800 PSI |
3.0 |
200,000 BTU |
420 lbs. |
Portable Unit with Ball
Bearing Pneumatic Wheels |
4 HP, 220 V, 1 PH |
|
3241 |
2400 PSI |
3.0 |
320,000 BTU |
575 lbs. |
Stationary Unit |
5 HP, 230 V, 1 PH |
|
4181 |
1800 PSI |
4.0 |
350,000 BTU |
810 lbs. |
Stationary Unit |
5 HP, 230 V, 1 PH |
|
4231 |
2300 PSI |
3.7 |
350,000 BTU |
815 lbs. |
Stationary Unit |
6 HP, 230 V, 1 PH |
|
4301 |
3000 PSI |
4.0 |
350,000 BTU |
845 lbs. |
Stationary Unit |
8 HP, 230 V, 1 PH |
|
5181 |
1800 PSI |
4.8 |
490,000 BTU |
840 lbs. |
Stationary Unit |
6 HP, 230 V, 1 PH |
|
5231 |
2300 PSI |
5.0 |
490,000 BTU |
845 lbs. |
Stationary Unit |
8 HP, 230 V, 1 PH |
|
5301 |
3000 PSI |
5.0 |
490,000 BTU |
855 lbs. |
Stationary Unit |
10 HP, 230 V, 3 PH |
|
5401 |
4000 PSI |
5.0 |
490,000 BTU |
900 lbs. |
Stationary Unit |
15 HP, 230 V, 3PH, Fuse
for 40 Amp |
|
5501 |
5000 PSI |
5.5 |
490,000 BTU |
950 lbs. |
Stationary Unit |
15 HP, 230 V, 3 PH,
Fuse for 50 Amp |
|
6181 |
1800 PSI |
6.0 |
600,000 BTU |
910 lbs. |
Stationary Unit |
8 HP, 230 V, 1 PH |
|
6251 |
2500 PSI |
6.0 |
600,000 BTU |
910 lbs. |
Stationary Unit |
10 HP, 230 V, 3 PH |
|
7301 |
3000 PSI |
7.0 |
720,000 BTU at 4.5 W.C.
(manifold) |
|
High Capacity |
15 HP, 230/460 V, 3 PH |
|
8151T |
1500 PSI |
8.0 |
880,000 BTU |
1010 lbs. |
Stationary Unit |
8 HP, 230 V, 3 PH |
|
8201T |
2000 PSI |
8.0 |
880,000 BTU; Gas:
1,040,000 BTU |
1010 lbs. |
Stationary Unit |
10 HP, 230 V, 3 PH |
|
8251T |
2500 PSI |
8.0 |
880,000 BTU; Gas:
1,040,000 BTU |
1010 lbs. |
Stationary Unit |
15 HP, 230 V, 3 PH |
|
8351 |
3500 PSI |
8.0 |
720,000 BTU at 4.5" W.C.
(manifold) |
|
High Capacity |
20 HP, 230/460 V, 3 PH |
|
10000 |
1000 PSI |
10.0 |
Oil: 945,000 BTU |
1550 lbs. |
Stationary Unit |
7.5 HP, 230 V/460 V, 3
PH |
|
10201 |
2000 PSI |
10.0 |
920,000 BTU at 4" W.C.
(manifold) |
|
High Capacity |
15 HP, 230/460 V, 3 PH |
|
10301 |
3000 PSI |
10.0 |
920,000 BTU at 4" W.C.
(manifold) |
|
High Capacity |
20 HP, 230/460 V, 3 PH |
|
22000 |
2000 PSI |
10.0 |
Oil: 945,000 BTU |
2250 lbs. |
Stationary Unit |
15 HP, 230 V/460 V, 3
PH |
* All 115 volt models have ground fault interrupters
standard.
** All items except models 5401 and 5501 are not
stocked; lead time is 2-4 weeks.
|
GAS ENGINE SERIES
3205-2T
Pictured with optional hose reel
Designed with the operator in mind, Alkota's Gas & Diesel
Driven pressure washers go where they're needed without any
worries about electrical supply. The water pump and burner
are driven by the engine, with an automatic ignition
providing spark to ignite the burner.
By combining the best brand name components, heavy steel
construction, and quality features, Alkota's Gas & Diesel
Driven machines are ideal for all mobile commercial and
industrial cleaning.
|
Model # |
Pressure |
GPM |
HP |
Engine |
Tank |
Weight |
Burner (Pressure Atomizing
Auto Ignition) |
|
3205-2T |
2000 PSI |
3.0 |
5.5 |
Honda |
Fuel: 6.5 Gallon |
475 lbs. |
Kero, #1 Diesel;
270,000 BTU |
|
3255 |
2500 PSI |
3.0 |
9 |
Honda |
Fuel: 11 Gallon; Gas:
1.4 Gallon |
530 lbs. |
Kero, #1 Diesel;
230,000 BTU; 12 Volt |
|
4305-2T |
3000 PSI |
4.0 |
13 |
Honda |
Fuel: 7 Gallon; Gas:
1.7 Gallon |
530 lbs. |
Kero, #1 Diesel;
375,000 BTU |
|
4355-H |
3500 PSI |
4.0 |
13 |
Honda |
Fuel: 11 Gallon; Gas:
1.7 Gallon |
575 lbs. |
Kero, #1 Diesel;
230,000 BTU; 12 Volt |
|
4405-F |
4000 PSI |
4.0 |
16 |
Vanguard |
Fuel: 11 Gallon; Gas:
2.7 Gallon |
560 lbs. |
Kero, #1 Diesel;
230,000 BTU; 12 Volt |
|
4405E |
4000 PSI |
4.0 |
16 |
Vanguard |
Fuel: 9.5 Gallon; Gas:
2.7 Gallon |
850 lbs. |
Kero #1, #2 Diesel;
350,000 BTU; 12 Volt |
|
4405G |
4000 PSI |
4.0 |
20 |
Honda |
Fuel: 11 Gallon; Gas:
2.7 Gallon |
870 lbs. |
Kero, #1 Dsl; 230,000
BTU; 12 Volt |
|
5305A |
3000 PSI |
5.0 |
|
Optional; 18 HP Twin
Cylinder Briggs & Stratton, Kohler, or 15 HP Hatz
Diesel Engine, Electric Start |
Fuel: 12 Gallon; Gas: 6
Gallon |
960 lbs. |
Kero, #1 Diesel;
535,000 BTU |
|
5305EA |
3000 PSI |
5.0 |
16 |
Vanguard |
Fuel: 9.5 Gallon; Gas:
2.7 Gallon |
850 lbs. |
Kero, #1, #2 Diesel;
350,000 BTU; 12 Volt |
|
5305EB |
3000 PSI |
5.0 |
16 |
Vanguard |
Fuel: 9.5 Gallon; Gas:
2.7 Gallon |
850 lbs. |
Kero, #1, #2 Diesel;
350,000 BTU |
|
5355 |
3500 PSI |
5.3 |
20 |
Kohler Command |
Fuel: 12 Gallon; Gas: 6
Gallon |
950 lbs. |
Kero, #1 Diesel;
612,000 BTU |
|
5355J |
3500 PSI |
5.0 |
20 |
Honda |
Fuel: 12 Gallon; Gas:
2.7 Gallon |
870 lbs. |
Kero, #1 Dsl; 350,000
BTU |
|
5357 |
3500 PSI |
5.0 |
23 |
Lombardini |
Fuel: 27 Gallon |
1000 lbs. |
Kero, #1 Dsl; 490,000
BTU |
|
5405 |
4000 PSI |
4.5 |
20 |
Kohler Command |
Fuel: 12 Gallon; Gas: 6
Gallon |
950 lbs. |
Kero, #1 Diesel;
535,000 BTU |
|
5505 |
5000 PSI |
4.8 |
25 |
Kohler, Overhead Valve,
Oil Alert |
Fuel: 16.75 Gallon;
Gas: 10.5 Gallon |
1058 lbs. |
Kero, #1, #2 Diesel;
490,000 BTU; 110 Volt; 1 PH |
|
5507 |
5000 PSI |
5.0 |
23 |
Lombardini |
Fuel: 27 Gallon |
1100 lbs. |
Kero, #1 Dsl; 490,000
BTU |
|
8305 |
3000 PSI |
8.0 |
25 |
Kohler, Overhead Valve,
Oil Alert |
Fuel: 16.75 Gallon;
Gas: 10.5 Gallon |
895 lbs. |
Kero, #1 Dsl; 490,000
BTU |
ALL ELECTRIC
| Alkota's "All Electric Series" has been
specifically engineered for areas where open flame
is a problem, space is valuable, noise is
unacceptable and where hot high pressure cleaning
capabilities are necessary. Gallonages run from 2 to
8 gallons per minute while pressures are from 1000
PSI to 2000 PSI; a 100 gallon per hour steam cleaner
is also available. These models operate completely
on electricity and are available in either 240 volt
or 480 volt, 3 phase power. Hot high pressure with
precise metered chemical make these units ideal for
use in restaurants, hospitals, food processing
plants and industrial centers. All components are
enclosed to protect against wet environment. If your
cleaning requirements demand a smokeless and
fumeless environment, Alkota's All Electric cleaning
machines are your first choice. |
Printer-friendly page
|
| MODEL |
2148 |
3158 |
4208 |
4308 |
108 |
|
Gallonage |
2 GPM |
3 GPM |
3.5 GPM |
3.5 GPM |
100 GPH |
|
Pressure |
1400 PSI |
1500 PSI |
2000 PSI |
3000 PSI |
400 PSI |
|
Pump |
Duplex, Oil Bath Crankcase,
Positive Displacement |
Triplex, Oil Bath Crankcase,
Positive Displacement |
Triplex, Oil Bath Crankcase,
Positive Displacement |
Triplex, Oil Bath Crankcase,
Positive Displacement |
Triplex, Oil Bath Crankcase,
Positive Displacement |
|
Motor |
2 HP |
3 HP |
5 HP |
7.5 HP |
3/4 HP |
|
Water Heater |
Replaceable, 3 - 10,000 Watt,
Stainless Steel Immersion Heater, Temperature
Control - Standard |
Replaceable, 6 - 10,000 Watt,
Stainless Steel Immersion Heater, Temperature
Control - Standard |
Replaceable, 6 - 10,000 Watt,
Stainless Steel Immersion Heater, Temperature
Control - Standard |
Replaceable, 6 - 10,000 Watt,
Stainless Steel Immersion Heater, Temperature
Control - Standard |
Replaceable, 6 - 10,000 Watt,
Stainless Steel Immersion Heater, Temperature
Control - Standard |
|
Power
Requirements |
240 V, 3 PH (80 Amps) |
240 V, 3 PH (155 Amps)
480 V, 3 PH (77 Amps) |
240 V, 3 PH (155 Amps)
480 V, 3 PH (77 Amps) |
240 V, 3 PH (160 Amps)
480 V, 3 PH (80 Amps) |
240 V, 3 PH (155 Amps)
480 V, 3 PH (77 Amps) |
|
Heat Rise |
110 F |
1400 F |
1000 F |
1000 F |
2500 F |
|
Wand |
Trigger-Standard |
Trigger-Standard |
Trigger-Standard |
Trigger-Standard |
Open-Standard |
|
Hose |
3/8" x 50' |
3/8" x 50' |
3/8" x 50' |
3/8" x 50' |
3/8" x 50' |
|
Chemical |
Precise Metered |
Precise Metered |
Precise Metered |
Precise Metered |
Precise Metered |
|
Float Tank |
Stainless Steel Float Controlled |
Stainless Steel Float Controlled |
Stainless Steel Float Controlled |
Stainless Steel Float Controlled |
Stainless Steel Float Controlled |
|
Steam Capacity |
N/A |
N/A |
N/A |
N/A |
100 GPH |
|
Options |
Wheel Kit |
Wheel Kit |
Wheel Kit |
Wheel Kit |
Wheel Kit |
|
Dimensions |
34" L, 24" W, 37" H |
34" L, 24" W, 37" H |
34" L, 24" W, 37" H |
34" L, 24" W, 37" H |
34" L, 24" W, 37" H |
|
Weight |
335 lBS |
375 lBS |
375lBS |
385 lBS |
360 lBS |
|
 |
|
